PFNA Nail Specification, uses, Sizes, Surgical Techniques and Clinical Evaluation.

Proximal Femoral Nail Antirotation (PFNA) is an intramedullary implant for the treatment of unstable trochanteric femoral fractures, with the additional option of augmentation. PFNA represents a unique intramedullary nail system for improved management, particularly in the elderly. PFNA is an excellent device for osteosynthesis as it can be easily inserted, it provides angular and rotational stability and allows early weight bearing on the affected limb.


PFNA Nail Specification.

The PFNA Nail has a medial-lateral angle of 6°. This allows insertion at the tip of the greater trochanter.

Several distal locking options: Static or dynamic locking can be performed via the aiming arm with PFNA small and medium. The PFNA long additionally allows for secondary dynamization.

The PFNA Nail is available in 4 sizes

  1. Small, length 180 mm
  2. Small, length 200 mm
  3. Medium, length 240 mm
  4. Large, length 300-420 mm

Inserting the PFNA blade compacts the cancellous bone providing additional anchoring, which is especially important in osteoporotic bone.

Increased stability caused by bone compaction around the PFNA blade has been biomechanically proven to retard rotation and varus collapse. Biomechanical tests have demonstrated that the PFNA blade had a significantly higher cut-out resistance in comparison with commonly-used
screw systems.

All surgical steps required to insert the PFNA blade are performed through lateral incision. The PFNA blade is automatically locked to prevent rotation of the blade and femoral head.

PFNA Nail Specification

PFNA Nail Sizes and Uses.

PFNA Nail Sizes

Length 180 mm
Dia 9mm, 10mm, 11mm and 12mm

Length 200 mm
Dia 9mm, 10mm, 11mm and 12mm

Length 240 mm
Dia 9mm, 10mm, 11mm and 12mm

Length 300 mm to 420 mm
Dia 9mm, 10mm, 12mm and 14mm , Left and Right

PFNA Nail Uses

PFNA Nail short (Length 180 mm – 240 mm)


  1. Pertrochanteric fractures
  2. Intertrochanteric fractures
  3. High subtrochanteric fractures


  1. Low subtrochanteric fractures
  2. Femoral shaft fractures
  3. Isolated or combined medial femoral neck fractures

PFNA Nail long (Length 300 mm – 420 mm)


  1. Low and extended subtrochanteric fractures
  2. Ipsilateral trochanteric fractures
  3. Combination fractures (in the proximal femur)
  4. Pathological fractures


  1. Isolated or combined medial femoral neck fractures

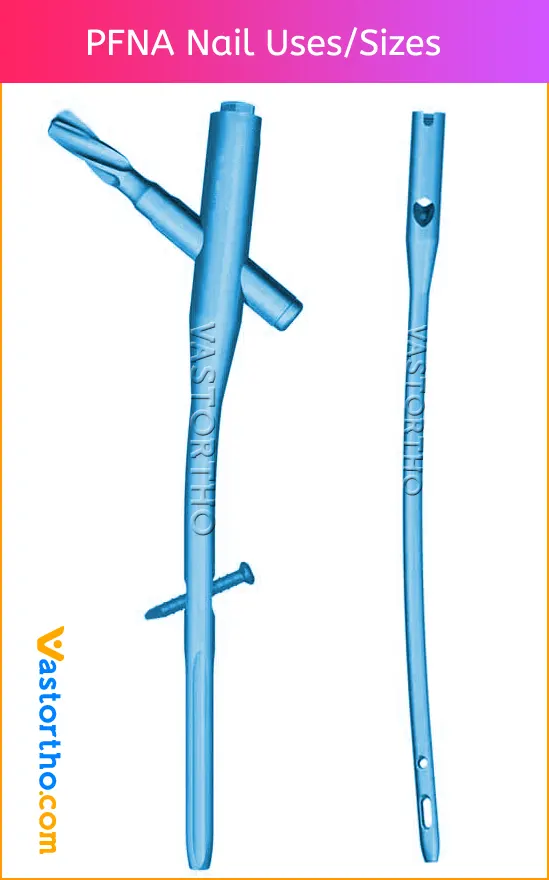

PFNA Nail Uses Sizes

PFNA Nail Contraindications

The physician’s education, training and professional judgement must be relied upon to choose the most appropriate device and treatment. Conditions presenting an increased risk of failure include:

  • Any active or suspected latent infection or marked local inflammation in or about the affected area.
  • Compromised vascularity that would inhibit adequate blood supply to the fracture or the operative site.
  • Bone stock compromised by disease, infection or prior implantation that can not provide adequate support and/or fixation of the devices.
  • Material sensitivity, documented or suspected.
  • Obesity. An overweight or obese patient can produce loads on the implant that can lead to failure of the fixation of the device or to
    failure of the device itself.
  • Patients having inadequate tissue coverage over the operative site.
  • Implant utilization that would interfere with anatomical structures or physiological performance.
  • Any mental or neuromuscular disorder which would create an unacceptable risk of fixation failure or complications in postoperative care.
  • Other medical or surgical conditions which would preclude the potential benefit of surgery.

Do you have any questions for PFNA Nail? Please fill this form we will get in touch with you shortly.

This field is for validation purposes and should be left unchanged.

Clinical Evaluation of PFNA Nail for treatment of intertrochanteric fractures.


Primary hemiarthroplasty was recommended by some surgeons as the preferred choice in treating unstable senile intertrochanteric fractures with osteoporosis. However, many studies reported that proximal femoral nail antirotation (PFNA) currently was as an optimal implant for the treatment of different type of intertrochanteric fractures. Which method is better for treating senile intertrochanteric fractures remains controversial due to the insufficient clinical evidences.


We reviewed all consecutive senile intertrochanteric fractures treated with PFNA or cemented hemiarthroplasty at our institution between July 2010 and March 2015. The primary outcome measures were postoperative complications, reoperation rate and hip function. The secondary outcome measures were intraoperative blood loss, transfusion rate, surgical time, postoperative hemoglobin, hospital stay and 1- year mortality.


Seventy-one patients in PFNA group and 52 patients in hemiarthroplasty group were included for analysis. There were no significant differences between the two groups regarding to the orthopaedic complications, reoperation rate, surgical time and Harris Hip Score at 1 year follow-up. Significant differences were found between PFNA and hemiarthroplasty group in comparison of intraoperative blood loss (P < 0.001), transfusion rate, medical complications (P = 0.037) and hospital stay (P = 0.001). Patients treated with hemiarthroplasty had a trend of higher postoperative 1- year mortality compared to those underwent PFNA but this was statistically not significant (P = 0.134).


These findings indicate that PFNA has obvious advantages over hemiarthroplasty in the treatment of senile intertrochanteric fractures. Hemiarthroplasty in treating these fractures is associated with greater surgical trauma and higher incidence of postoperative medical complications.

PFNA Nail Surgical Techniques

1. Determine entry point

In AP view, the PFNA entry point is on the tip or slightly lateral to the tip of the greater trochanter in the curved extension of the medullary cavity, as the ML angle of the PFNA is 6°.

In lateral view the entry point is in line with the axis of the intramedullary canal.

PFNA2 Surgical Techniques 1

2. Insert guide wire

Secure the guide wire in the power tool. Alternatively, the universal chuck with T-handle can be used to insert the guide wire manually.

Position both the protection sleeve and the drill sleeve at the insertion point. Insert the guide wire through the protection sleeve and the drill sleeve. Remove the power tool and the drill sleeve.

To correct the placement of the guide wire, leave the first guide wire in place and insert a second guide wire through one of the multiple holes of the drill sleeve.

PFNA2 Surgical Techniques 2

3. Open femur with flexible drill bit

Guide the flexible cannulated drill bit through the protection sleeve over the guide wire and drill the cavity for the proximal part of the PFNA nail with the power tool. Remove the drill bit, the protection sleeve and the guide wire.

Precaution: It is recommended to open the femur by using a power tool at high speed or carefully by hand. To prevent dislocating the fracture fragments, avoid lateral movements or excessive compression forces.

PFNA2 Surgical Techniques 3

4. Option: Ream medullary canal

If necessary, enlarge the femoral canal to the desired diameter using the medullary reamer

Check fracture reduction under image intensifier control.

Insert reaming rod: Insert the reaming rod into the medullary canal to the desired insertion depth. The tip must be correctly positioned
in the medullary canal since it determines the final distal position of the long PFNA Nail.

Reaming: Starting with the 8.5 mm diameter reaming head, ream to a diameter of 0.5 to 1.5 mm greater than the nail diameter. Ream in 0.5 mm increments and advance the reamer with steady, moderate pressure. Do not force the reamer. Partially retract the reamer repeatedly to clear debris from the medullary canal.

Use the holding forceps to retain the reaming rod while reaming and to prevent it from rotating. Remove the reaming rod before locking the intramedullary nail.

PFNA2 Surgical Techniques 4

1. Assemble PFNA instruments

Guide the connecting screw through the insertion handle and secure the desired PFNA Nail to the insertion handle using the hexagonal screwdriver with spherical head.

Precaution: Ensure that the connection between PFNA Nail and insertion handle is tight (retighten, if necessary) to avoid deviations when inserting the PFNA blade through the aiming arm. Do not attach the aiming arm yet.

PFNA2 Surgical Techniques 5

2. Insert PFNA Nail

Use image intensifier control to insert the PFNA Nail. Carefully insert the PFNA manually using slight bidirectional turns of the insertion handle as far as possible into the femoral opening. If the PFNA cannot be inserted, select a smaller size PFNA Nail diameter or ream the medullary cavity to a diameter that is at least 1 mm larger than that of the selected nail.

The correct PFNA insertion depth is reached as soon as the projected PFNA blade is positioned in the center of the femoral head. A too cranial or too caudal PFNA position should be avoided as it can lead to malposition of the PFNA blade.

The anteversion can be determined by inserting a guide wire ventral to the femoral neck in the femoral head. In the mediolateral view, place the insertion handle parallel to the guide wire to align the correct rotation of the PFNA.

Remove all guide wires.

PFNA2 Surgical Techniques 6

Optional instruments

Attach the connector on the insertion handle and use light hammer blows on the connector to insert the nail.

Remove the connector.

Optionally, instead of the connector, the hammer guide can be threaded into the insertion handle and the hammer can be used as a slide hammer.

Remove the hammer guide.

Precaution: Use only light blows on the connector for insertion handle. Avoid unnecessary use of force to prevent loss of reduction or an iatrogenic fracture.

PFNA2 Surgical Techniques 7

1. Choose aiming arm for PFNA blade insertion

Using the hexagonal screwdriver with spherical head, confirm that the connecting screw between the insertion handle and the PFNA Nail is sufficiently tightened.

Mount the appropriate aiming arm based on the chosen CCD angle of the PFNA and fix it firmly to the insertion handle.

Insert the plug for aiming arm into the locking hole of the nail length that is NOT used in this case.

PFNA2 Surgical Techniques 8

2. Prepare guide wire insertion

Screw the buttress nut on the protection sleeve for PFNA blade. Make sure the «lateral side» marking points towards the head of the sleeve. Screw the buttress nut up to the marking on the protection sleeve.

Insert the drill sleeve and the trocar through the protection sleeve.

Advance the entire sleeve assembly for PFNA blade through the aiming arm to the skin until it clicks into the aiming arm. Adjust the position of the buttress nut if necessary.

Verify nail insertion depth and position for the helical blade/screw. Place a guide wire on the yellow marking of the aiming arm and radiographically check the guide wire position in AP.

PFNA2 Surgical Techniques 9

3. Option: Position guide wire with aiming device

Attach the guide wire aiming device for AP orientation to the aiming arm using the connecting screw for PFNA Nail.

Position the C-arm for the AP view. Rotate the C-Arm until any two orientation lines are symmetric to the protection sleeve.

The midline in between these two orientation lines predicts the location of the guide wire and PFNA Blade.

Adapt the insertion depth of the nail until the midline is centered in the femoral head.

The C-arm may be readjusted to make sure that two lines are symmetric to the sleeve.

PFNA2 Surgical Techniques 10

Position the C-arm in the true lateral view (alignment of the axis of the femoral neck congruent with the axis of the femoral shaft).

Adjust nail rotation until the two lines on the insertion handle are symmetric to the PFNA nail.

Note: A 3.2 mm guide wire can be inserted in the corresponding hole in the insertion handle to predict the location of the guide wire and PFNA blade.

PFNA2 Surgical Techniques 11

4. Insert guide wire

Make a stab incision in the area of the trocar tip. Advance the sleeve assembly through the soft tissues in direction of the lateral cortex.

Insert the sleeve assembly as far as the lateral cortex. Advance the protection sleeve to the lateral cortex using slight clockwise turns of the buttress nut. Prepare the passage of the protection sleeve by turning the internal drill sleeve.

Note: The sleeve assembly must be in contact with the bone during the entire blade implantation. Do not tighten the buttress nut too firmly as this could impair the precision of the insertion handle and sleeve assembly.

Mark the femur and remove the trocar. Insert a new guide wire through the drill sleeve into the bone. Verify both direction and position under image intensifier control in both AP and lateral view.

PFNA2 Surgical Techniques 12

In the AP and lateral view, the optimal position of the guide wire is the exact center of the femoral head. Insert the guide wire subchondrally into the femoral head at a distance of 10 mm below the joint level. Minimal distance to the joint is 5 mm. The tip of the guide wire is positioned at the intended blade tip position.

Note: If the PFNA Nail or the guide wire requires repositioning; remove the guide wire, release the sleeve assembly with buttress nut from the aiming arm by pressing the button on the clamp device, and remove it. The PFNA can be repositioned only by rotation, deeper insertion or partial retraction. Reinsert the sleeve assembly and turn the buttress nut clockwise to position the assembly on the bone. Introduce a new
guide wire.

Precaution: Insert the guide wire for the PFNA blade carefully to avoid penetration into the joint. Penetration of the articular surface might lead to a contraindication for the augmentation of the PFNA blade.

PFNA2 Surgical Techniques 13

Optional technique for antirotation wires

In very unstable fractures, insert an additional guide wire to prevent rotation. Leave the drill sleeve in place in the protection sleeve when applying this technique.

After having inserted the guide wire into the femoral head, secure the aiming jig for anti-rotation wire either anterior or posterior to the aiming arm. Secure the position of the anti-rotation wire by tightening the hexagonal nut.

Insert the drill sleeve into the aiming jig for anti-rotation wire. Make a stab incision and insert the drill sleeve to the bone.

PFNA2 Surgical Techniques 14

Use image intensifier control to insert a guide wire into the femoral head. If a second anti-rotation wire is necessary, use the same procedure to insert it into the femoral head.

Note: In axial view, the anti-rotation wire will approach, but not touch the blade tip. This anti-rotation wire fixes the femoral head only temporarily and will be removed after the insertion of the blade.

PFNA2 Surgical Techniques 15

5. Measure the PFNA blade length

Verify the position of the guide wire in AP and lateral view before measuring the length.

Guide the measuring device over the guide wire. Advance the measuring device to the protection sleeve and determine the length of the required blade. The measuring device indicates the exact length of the guide wire in the bone.

In the AP and lateral view, the correct position of the PFNA blade is 10 mm below the joint level. Minimal distance to the joint is 5 mm. If the guide wire’s position is subchondral, subtract 10 mm to measure the PFNA blade length correctly.

Remove the measuring device.

Carefully remove the drill sleeve without changing the position of the guide wire.

PFNA2 Surgical Techniques 16

6. Open lateral cortex for PFNA blade insertion

Push the cannulated drill bit over the 3.2 mm guide wire. Drill to the stop. This opens the lateral cortex.

Precaution: If the guide wire has been bent slightly during insertion, guide the drill bit over the wire using carefully forward and backward movements. However, if the wire has been bent to a greater extent, reinsert it or replace it by a new guide wire (see step 4). Otherwise, the guide wire may be advanced through the joint.

PFNA2 Surgical Techniques 17

7. Drill hole for PFNA blade

Note: Use reamer only in a situation with good bone quality.

Set the chosen blade length on the cannulated reamer by fixing the fixation sleeve in the corresponding position. Read off the correct length on the side of the fixation sleeve pointing towards the tip of the reamer.

Push the reamer over the guide wire. Monitor drilling under image intensifier control. Drill to the stop. The fixation sleeve prevents further drilling.

Precaution: Use the reamer only after opening the lateral cortex. If the guide wire has been bent slightly during insertion, guide the reamer over the wire using carefully forward and backward movements. However, if the wire has been bent to a greater extent, reinsert it or replace it with a new guide wire (see step 4). Otherwise, the guide wire may be advanced through the joint.

PFNA2 Surgical Techniques 18

8. Assemble PFNA blade on the impactor

The PFNA blade is supplied in a locked state.

While attaching the PFNA blade on the impactor, screw the impactor counterclockwise into the end of the PFNA blade to unlock the blade. Push the PFNA blade gently towards the impactor while attaching the PFNA blade. Do not overtighten.

Precaution: The tip of the PFNA blade must rotate freely after attaching it to the impactor. This is essential for the implantation of the PFNA blade. Otherwise remove and dispose of the blade. Do not over tighten the connection between the impactor and the PFNA blade.

PFNA2 Surgical Techniques 19

9. Insert PFNA2 blade

Insert the blade-impactor assembly over the guide wire. Push the button on the protection sleeve, align the blade (note marking on the protection sleeve) and advance the blade impactor assembly further through the protection sleeve.

Manually insert the blade over the guide wire advancing as far as possible into the femoral head.

PFNA2 Surgical Techniques 20

Use monitoring during insertion of the PFNA blade.

Insert the PFNA blade to the stop by applying gentle blows with the hammer.

Precaution: Inserting the blade to the stop is important, as the impactor must click into the protection sleeve. Do not use unnecessary force when inserting the PFNA blade.

PFNA2 Surgical Techniques 21

10. Lock PFNA blade

To lock the PFNA blade, turn the impactor clockwise and tighten the blade.

Verify PFNA blade locking intraoperatively. The PFNA blade is locked if all gaps are closed.

Note: The gliding of the PFNA blade is guaranteed. If the PFNA blade cannot be locked, remove it and replace it with a new PFNA blade.

PFNA2 Surgical Techniques 22

Press the button on the protection sleeve to remove the impactor. Remove and dispose of the guide wire.

When proximal locking is complete, release and remove the protection sleeve and the buttress nut by pressing the button on the clamp device of the aiming arm in order to continue with distal locking or leave it in place to continue with intraoperative compression.

PFNA2 Surgical Techniques 23

11. Option: Intraoperative compression

Precaution: Do not use intraoperative compression in osteoporotic bone.

Screw the compression instrument into the blade through the protection sleeve.

Turn the buttress nut counterclockwise to move the protection sleeve backwards until it is pushing towards the compression instrument.

PFNA2 Surgical Techniques 24

Under image intensifier control, further turn the buttress nut counterclockwise to achieve intraoperative compression and
close the fracture gap.

–– The blade must be locked to apply intraoperative compression.
–– Control compression under image intensifier control.
–– Do not use excessive force in order to avoid pulling out the blade from the femoral head.
–– The blade may be slightly overinserted before applying intraoperative compression to prevent it from sticking out laterally.

Release strain by turning the buttress nut clockwise.

Remove the compression instrument. Verify PFNA blade locking under image intensifier control. The PFNA blade is locked if all gaps are closed. If necessary, relock the blade using the extraction screw.

Release and remove the protection sleeve and the buttress nut by pressing the button on the clamp device of the aiming arm to continue with distal locking.

PFNA2 Surgical Techniques 25
