Veterinary Implants Catalog download link is given below.
If you unable to download our Veterinary Implants Catalog then please email at info@vastortho.com.
We will send you our latest Catalog on your email id within 48 hours.
Below are list of products from Veterinary Implants Catalog.
Bone Plates from Veterinary Implants Catalog
2 mm Locking Cuttable Plates
2.4 mm Locking Cuttable Plates
2.7 mm Locking Cuttable Plates
2.7 mm Locking Cuttable Plates
2 mm Locking Cuttable T Plates
2.4 mm Locking Cuttable T Plates
2.7 mm Locking Cuttable T Plates
3.5 mm Locking Cuttable T Plates
2 mm Locking Supracondylar Plates
2.4 mm Locking Supracondylar Plates
2.7 mm Locking Supracondylar Plates
3.5 mm Locking Supracondylar Plates
2 mm Locking Compression Plates
2.4 mm Locking Compression Plates
2.7 mm Locking Compression Plates
3.5 mm Locking Compression Plates
5 mm Locking Narrow Compression Plates
5 mm Locking Broad Compression Plates
2.4 mm TPLO Plate
2.7 mm TPLO Plate
3.5 mm TPLO Plate
2.7 mm Locking Reconstruction Plates
2.7 mm Locking Reconstruction Plates Curved
3.5 mm Locking Reconstruction Plates
3.5 mm Locking Reconstruction Plates Curved
2 mm Locking T Plates, 2 Head Holes
2.4 mm Locking T Plates, 2 Head Holes
2.7 mm Locking T Plates, 2 Head Holes
3.5 mm Locking T Plates, 2 Head Holes
2 mm Locking T Plates Clover Leaf
2.4 mm Locking T Plates Clover Leaf
2.7 mm Locking T Plates Clover Leaf
3.5 mm Locking T Plates Clover Leaf
2/2.7 mm Locking Pancarpal Arthrodesis Plate
2.7/3.5 mm Locking Pancarpal Arthrodesis Plate
2/2.7 Locking Pantarsal Arthrodesis Plates
2.7/3.5 Locking Pantarsal Arthrodesis Plates
2 mm Dynamic Compression Plates
2.4 mm Dynamic Compression Plates
2.7 mm Dynamic Compression Plates
3.5 mm Dynamic Compression Plates
4.5 mm Narrow Dynamic Compression Plates
4.5 mm Broad Dynamic Compression Plates
2 mm Locking Acetabular Plates
2.4 mm Locking Acetabular Plates
2.7 mm Locking Acetabular Plates
3.5 mm Locking Acetabular Plates
Toggle Pins
Suture Buttons
6/7/8 mm Veterinary Straight Nails
6/7/8 mm Veterinary Angled Nails
Bone Screws from Veterinary Implants Catalog
2 mm Locking Cortical Screws
2.4 mm Locking Cortical Screws
2.7 mm Locking Cortical Screws
3.5 mm Locking Cortical Screws
5 mm Locking Cortical Screws
2 mm Cortical Screws
2.4 mm Cortical Screws
2.7 mm Cortical Screws
3.5 mm Cortical Screws
4.5 mm Cortical Screws
3.5 mm Locking Cancellous Screws
4 mm Locking Cancellous Screws
5 mm Locking Cancellous Screws
6.5 mm Locking Cancellous Screws
3.5 mm Locking Cancellous Screws
4 mm Locking Cancellous Screws
6.5 mm Locking Cancellous Screws
MonoAxial Screws
MonoAxial Reduction Screws
PolyAxial Screws
PolyAxial Reduction Screws
Instruments Set from Veterinary Implants Catalog
In our Veterinary Implants Catalog there are different types of Plates, Screws, Nail, Instruments Set etc. If you unable to find your required products then email us at info@vastortho.com or call/ WhatsApp Chat at +91 99116 55555.
Holes:
2.0 mm plate : 20 holes
2.4 mm plate : 20 holes
2.7 mm plate : 20 holes
3.5 mm plate : 20 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
Plates Width:
2.0 mm plate : 5 mm width
2.4 mm plate : 6 mm width
2.7 mm plate : 7 mm width
3.5 mm plate : 9 mm width
Holes Spacing:
2.0 mm plate : 6 mm space
2.4 mm plate : 7 mm space
2.7 mm plate : 8 mm space
3.5 mm plate : 11 mm space
Screws uses:
2.0 mm plate : 2 mm locking screws
2.4 mm plate : 2.4 mm locking screws
2.7 mm plate : 2.7 mm locking screws
3.5 mm plate : 3.5 mm locking screws
Locking Cuttable T Plates are available in four sizes:
Holes:
2.0 mm plate : 7 holes
2.4 mm plate : 7 holes
2.7 mm plate : 7 holes
3.5 mm plate : 7 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
Total Length:
2.0 mm plate : 47 mm
2.4 mm plate : 55 mm
2.7 mm plate : 62 mm
3.5 mm plate : 77 mm
Screws uses:
2.0 mm plate : 2 mm locking screws
2.4 mm plate : 2.4 mm locking screws
2.7 mm plate : 2.7 mm locking screws
3.5 mm plate : 3.5 mm locking screws
Locking Supracondylar Plates are available in four sizes:
Holes:
2.0 mm plate : 4, 5, 6, 7, 8 holes
2.4 mm plate : 4, 5, 6, 7, 8 holes
2.7 mm plate : 4, 5, 6, 7, 8 holes
3.5 mm plate : 4, 5, 6, 7, 8 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 9 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space
Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
Locking Compression Plates are available in six sizes:
Holes:
2.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.4 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.7 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
3.5 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
5.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
5.0 mm Broad plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3.5 mm thickness
5.0 mm plate : 4.5 mm thickness
5.0 mm Broad plate : 6 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 9 mm width
3.5 mm plate : 11 mm width
5.0 mm plate : 13.5 mm width
5.0 mm Broad plate : 17.5 mm width
Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 9 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space
5.0 mm plate : 18 mm space
5.0 mm Broad plate : 18 mm space
Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
5.0 mm plate : 5 mm locking screws, 4.5 mm Cortical screws, 5 mm Cancellous screws
5.0 mm Broad plate : 5 mm locking screws, 4.5 mm Cortical screws, 5 mm Cancellous screws
Locking TPLO Plates are available in four sizes:
Holes:
2.4 mm plate : 3, 4 holes
2.7 mm plate : 3, 4 holes
3.5 mm plate : 3, 4 holes
3.5 mm broad plate : 4 holes
Plates Thickness:
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
3.5 mm broad plate : 3 mm thickness
Plates Width:
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
3.5 mm broad plate : 13 mm width
Plate length:
2.4 mm plate : 50/58 mm
2.7 mm plate : 55/64 mm
3.5 mm plate : 67/77 mm
3.5 mm broad plate : 75 mm
Screws uses:
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
3.5 mm broad plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
Locking Reconstruction Plates are available in four sizes:
Holes:
2.7 mm Straight plate : 6, 8, 10, 12, 14, 16, 18 holes
2.7 mm curved plate : 6, 8, 10, 12, 14, 16, 18 holes
3.5 mm Straight plate : 6, 8, 10, 12, 14, 16, 18 holes
3.5 mm Curved plate : 6, 8, 10, 12, 14, 16, 18 holes
Plates Thickness:
2.7 mm Straight plate : 2.5 mm thickness
2.7 mm curved plate : 2.5 mm thickness
3.5 mm Straight plate : 3 mm thickness
3.5 mm Curved plate : 3 mm thickness
Plates Width:
2.7 mm Straight plate : 8 mm width
2.7 mm curved plate : 8 mm width
3.5 mm Straight plate : 10 mm width
3.5 mm Curved plate : 10 mm width
Holes Spacing:
2.7 mm Straight plate : 8 mm width
2.7 mm curved plate : 8 mm width
3.5 mm Straight plate : 12 mm width
3.5 mm Curved plate : 12 mm width
Screws uses:
2.7 mm Straight plate : 2.7 mm locking screws, 2.7 mm Cortical screws
2.7 mm curved plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm Straight plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
3.5 mm Curved plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
Locking T Plates 2 Head Holes are available in four sizes:
Holes:
2.0 mm plate : 3, 4, 5, 6 holes
2.4 mm plate : 3, 4, 5, 6 holes
2.7 mm plate : 3, 4, 5, 6 holes
3.5 mm plate : 3, 4, 5, 6 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 10 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space
Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
Locking T Plates Clover Leaf are available in four sizes:
Holes:
2.0 mm plate : 3, 4, 5, 6 holes
2.4 mm plate : 3, 4, 5, 6 holes
2.7 mm plate : 3, 4, 5, 6 holes
3.5 mm plate : 3, 4, 5, 6 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 10 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space
Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
Locking Pancarpal Arthrodesis Plates are available in three sizes:
Holes:
2/2.4 mm Plates : 9 and 11 Holes
2.4/2.7 mm Plates : 9 and 11 Holes
2.7/3.5 mm Plates : 9 and 11 Holes
Plates Thickness:
2/2.4 mm Plates : 2.5 mm thickness
2.4/2.7 mm Plates : 2.5 mm thickness
2.7/3.5 mm Plates : 3 mm thickness
Plates Length:
2/2.4 mm Plates : 90 mm (9 holes), 97 mm (11 holes)
2.4/2.7 mm Plates : 97 mm (9 holes), 115 mm (11 holes)
2.7/3.5 mm Plates : 110 mm (9 holes), 120 mm (11 holes)
Screws uses:
2/2.4 mm Plates : 2 mm locking screws, 2 mm Cortical screws, 2.4 mm locking screws, 2.4 mm Cortical screws
2.4/2.7 mm Plates : 2.4 mm locking screws, 2.4 mm Cortical screws, 2.7 mm locking screws, 2.7 mm Cortical screws
2.7/3.5 mm Plates : 2.7 mm locking screws, 2.7 mm Cortical screws, 3.5 mm locking screws, 3.5 mm Cortical screws

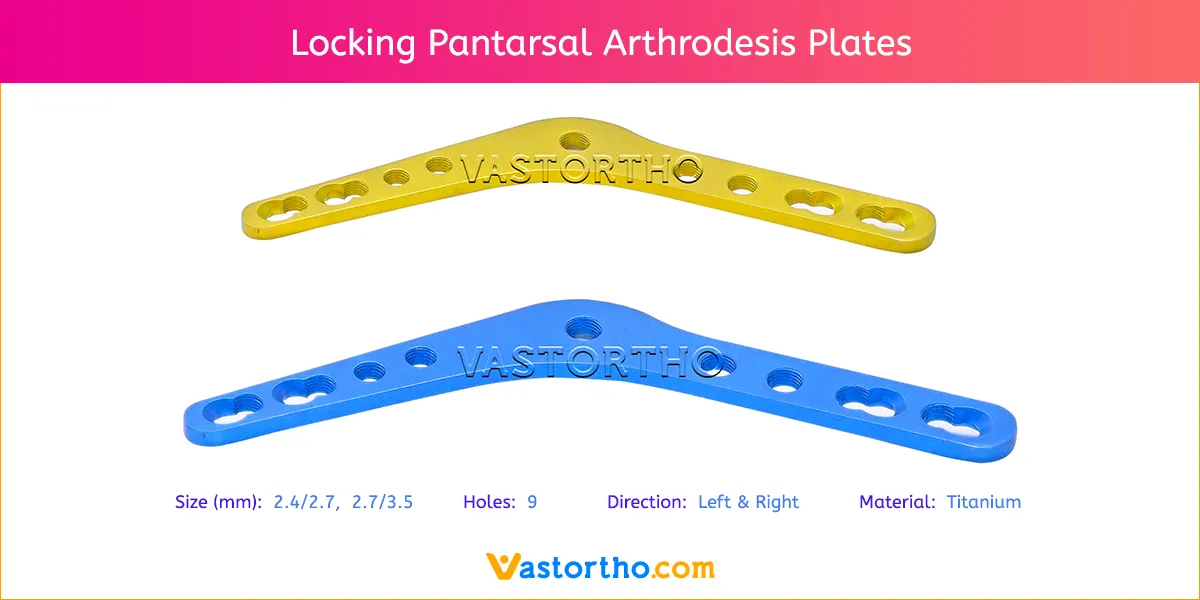

Locking Pantarsal Arthrodesis Plates Veterinary Implants are available in three sizes:
Holes:
2/2.4 mm Plates : 9 holes
2.4/2.7 mm Plates : 9 holes
2.7/3.5 mm Plates : 9 holes
Plates Thickness:
2/2.4 mm Plates : 2.5 mm thickness
2.4/2.7 mm Plates : 2.5 mm thickness
2.7/3.5 mm Plates : 3 mm thickness
Plates Length:
2/2.4 mm Plates : 90 mm
2.4/2.7 mm Plates : 100 mm
2.7/3.5 mm Plates : 120 mm
Screws uses:
2/2.4 mm Plates : 2 mm locking screws, 2 mm Cortical screws, 2.4 mm locking screws, 2.4 mm Cortical screws
2.4/2.7 mm Plates : 2.4 mm locking screws, 2.4 mm Cortical screws, 2.7 mm locking screws, 2.7 mm Cortical screws
2.7/3.5 mm Plates : 2.7 mm locking screws, 2.7 mm Cortical screws, 3.5 mm locking screws, 3.5 mm Cortical screws
Dynamic Compression Plates are available in six sizes:
Holes:
2.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.4 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.7 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
3.5 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
4.5 mm Narrow plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
4.5 mm Broad plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3.5 mm thickness
4.5 mm Narrow plate : 4 mm thickness
4.5 mm Broad plate : 5 mm thickness
Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
5.0 mm plate : 12 mm width
5.0 mm Broad plate : 16 mm width
Holes Spacing:
2.0 mm plate : 6 mm space
2.4 mm plate : 7 mm space
2.7 mm plate : 8 mm space
3.5 mm plate : 12 mm space
4.5 mm Narrow plate : 16 mm space
4.5 mm Broad plate : 16 mm space
Screws uses:
2.0 mm plate : 2 mm Cortical screws
2.4 mm plate : 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm Cortical screws, 4 mm Cancellous screws
4.5 mm Narrow plate : 4.5 mm Cortical screws, 5 mm Cancellous screws
4.5 mm Broad plate : 4.5 mm Cortical screws, 5 mm Cancellous screws
Locking Acetabular Plates Veterinary Implants are available in four sizes:
Holes:
2.0 mm plate : 4 holes
2.4 mm plate : 6 holes
2.7 mm plate : 6 holes
3.5 mm plate : 6 holes
Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 2.5 mm thickness
Plates Width:
2.0 mm plate : 4 mm width
2.4 mm plate : 5 mm width
2.7 mm plate : 7 mm width
3.5 mm plate : 10 mm width
Plate Length:
2.0 mm plate : 28 mm length
2.4 mm plate : 38 mm length
2.7 mm plate : 52 mm length
3.5 mm plate : 60 mm length
Screws uses:
2.0 mm plate : 2 mm locking screws
2.4 mm plate : 2.4 mm locking screws
2.7 mm plate : 2.7 mm locking screws
3.5 mm plate : 3.5 mm locking screws
Toggle Pins are available in three sizes:
Holes Diameter:
3 mm Toggle Pins : 1.2 mm
3.5 mm Toggle Pins : 1.5 mm
4 mm Toggle Pins : 2 mm
Pins Length:
3 mm Toggle Pins : 10 mm
3.5 mm Toggle Pins : 15 mm
4 mm Toggle Pins : 20 mm
2 Holes Suture Buttons:
thickness : 2 mm
width : 4 mm
length : 10 mm
hole dia : 1.5 mm
4 Holes Suture Buttons:
thickness : 2 mm
width : 4 mm
length : 14 mm
first & last hole dia : 1.1 mm
two middle hole dia : 1.5 mm
