Mini Fragment Instruments Set Features, Items and Pictures

Mini Fragment Instruments Set

Mini Fragment Instruments Set contains 2.4 mm and 2.7 mm instruments required for Locking and Non Locking Plates.

Mini Fragment Instruments Set Features:

Instruments for 2.4/2.7 mm Locking and Non Locking Plates.
Instruments are organised in general order of use.
Mini Fragment Instruments Set can be modified according to customer requirements and preference also, in this case minimum quantities are required.
Instruments are fitted in Silicon Foam.
Graphics of instruments are made in instruments Box to keep Instruments at their define places.

Mini Fragment Instruments Set Items

Our Orthopedic Instruments Set comprises many of items which are manufacture by superior grade of stainless steel, Aluminum and Carbon Fiber etc. These are the tools specifically designed to carry out different actions and to achieve various purposes during a surgery or an operation. We are giving our best efforts to keep the same quality standards of all orthopedic instruments as needed.

We are keeping wide range of instruments in Mini Fragment Instruments Set to ensures that Doctors get almost all required items during surgery for this instruments set. Instruments can be modified according to the customer’s requirement. All these instruments can be used several times.

Below are list of items in Mini Fragment Instruments Set.

2.4 mm Threaded Drill Guide for 1.8 mm Drill Bit : 2 Qty
2.7 mm Threaded Drill Guide for 2 mm Drill Bit : 2 Qty
Counter Sink Coupling Shaft : 1 Qty
Depth Gauge for 2 / 2.4 mm Screws : 1 Qty
Depth Gauge for 2.7 mm Screws : 1 Qty
Double Drill Sleeve (Universal Drill Sleeve) 1.8/2.4 mm : 1 Qty
Double Drill Sleeve (Universal Drill Sleeve) 2.0/2.7 mm : 1 Qty
Drill Bit 1.8 x 100 mm, Quick Coupling : 2 Qty
Drill Bit 2 x 100 mm, Quick Coupling : 2 Qty
Drill Bit 2.4 x 100 mm, Quick Coupling : 2 Qty
Drill Bit 2.7 x 100 mm, Quick Coupling : 2 Qty
Hohmann Retractor 6 mm : 1 Qty
Krischner Wire 1.8 x 150 mm : 5 Qty
Plate Bender : 2 Qty
Periosteal Elevator Fiber Handle : 1 Qty
Plate and Bone Holding Forceps Ratchet Lock-Type 1 : 1 Qty
Plate and Bone Holding Forceps Ratchet Lock-Type 2 : 1 Qty
Reduction Forcep Pointed Tip Ratchet Lock : 1 Qty
Reduction Forcep Serrated Tip Ratchet Lock : 1 Qty
Screw Driver Hexagonal, Holding Sleeve, for 2.7 mm Locking Screws : 1 Qty
Screw Driver Torque for 2.4/2.7 mm Locking Screws : 1 Qty
Screw Driver Quick Coupling for 2.7 mm Locking Screws : 1 Qty
Sharp Hook : 1 Qty
T Handle Quick Coupling : 1 Qty
Tap for 2.4 mm Screws, Quick Coupling : 1 Qty
Tap for 2.7 mm Screws, Quick Coupling : 1 Qty
Graphics Aluminium Box with Silicone Fittings : 1 Qty

Mini Fragment Instruments Set Pictures

Check below images of this set. In these images you will find all those instruments that are part of this Mini Fragment Instruments Set.

Mini Fragment Instruments Set 1

Mini Fragment Instruments Set 2

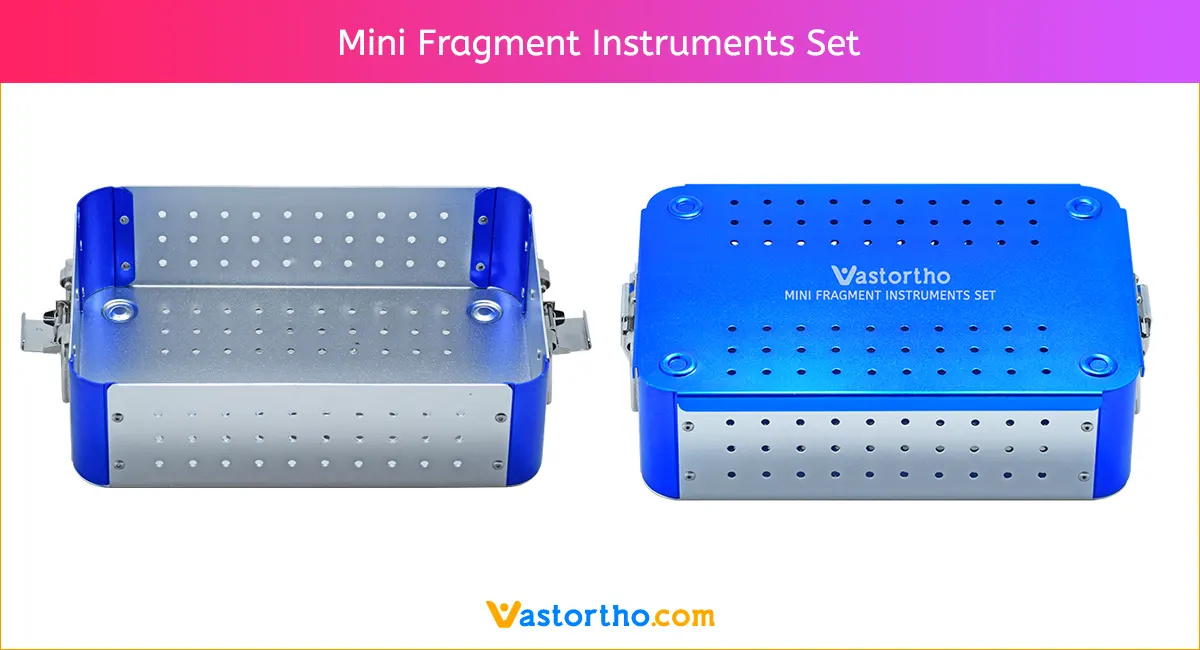

Mini Fragment Instruments Set 3

Do you have any questions for Mini Fragment Instruments Set?
Please fill this form we will get in touch with you shortly.

2.4 mm Locking Instruments Set
February 4, 2021/by VastOrtho

2.7 mm Locking Instruments Set
February 3, 2021/by VastOrtho

Distal Radius Instruments Set
February 2, 2021/by VastOrtho

Small Fragment Instruments Set
February 2, 2021/by VastOrtho

3.5 mm Locking Instruments Set
February 1, 2021/by VastOrtho

Large Fragment Instruments Set
January 30, 2021/by VastOrtho

5 mm Locking Instruments Set
January 29, 2021/by VastOrtho

4.5 mm Locking Instruments Set
January 28, 2021/by VastOrtho

Dynamic Hip Screw Instruments Set
January 27, 2021/by VastOrtho

Interlocking Nail Instruments Set
January 26, 2021/by VastOrtho

Tibia Nail Instruments Set
January 26, 2021/by VastOrtho

Expert Tibia Nail Instruments Set
January 25, 2021/by VastOrtho

Femur Nail Instruments Set
January 25, 2021/by VastOrtho

PFN Nail Instruments Set
January 24, 2021/by VastOrtho

PFNA2 Instruments Set
January 23, 2021/by VastOrtho

PFNA Instruments Set
January 22, 2021/by VastOrtho

Gamma Nail Instruments Set
January 21, 2021/by VastOrtho

Humerus Nail Instruments Set — Humeral (Humerus) Nail Instruments Set
January 20, 2021/by VastOrtho

Titanium Elastic Nail Instruments Set
January 18, 2021/by VastOrtho

TENS Nail Instruments Set
January 17, 2021/by VastOrtho

Kuntscher Nail Instruments Set — Kuntscher Nail (K Nail) Instruments Set
January 16, 2021/by VastOrtho

Herbert Screws Instruments Set Image — Herbert Screws Instruments Set
January 13, 2021/by VastOrtho

Headless Screws Instruments Set Image — Headless Screws Instruments Set
January 13, 2021/by VastOrtho

4 mm Cannulated Cancellous Screws Instruments Set — 4 mm Cannulated Screws Instruments Set
January 13, 2021/by VastOrtho

6.5 mm Cannulated Cancellous Screws Instruments Set — 6.5mm Cannulated Screws Instruments Set
January 12, 2021/by VastOrtho

Spine Instruments Set
January 11, 2021/by VastOrtho

Pedicle Screws Instruments Set
January 10, 2021/by VastOrtho

Laminectomy Instruments Set — Laminectomy instruments set
January 5, 2021/by VastOrtho

Bipolar Instruments Set
January 4, 2021/by VastOrtho

Angle Blade Plate Instruments Set
January 3, 2021/by VastOrtho

Austin Moore Instruments Set
January 2, 2021/by VastOrtho

Broken Screw Removal Instruments Set — Broken Screw Removal Set
January 1, 2021/by VastOrtho

Mini Locking Instruments Set
January 19, 2019/by VastOrtho

Small Locking Instruments Set
January 18, 2019/by VastOrtho

Large Locking Instruments Set
January 17, 2019/by VastOrtho

Femoral Nail Instruments Set
January 9, 2019/by VastOrtho

PFNA II Instruments Set — PFNA-II Instruments Set
January 8, 2019/by VastOrtho

Polyaxial Screws Instruments Set
January 7, 2019/by VastOrtho

Mini Fragment Instruments Set Contraindications

Contraindications may be qualified or total, and need to be taken into consideration when evaluating the prognosis in each case. Alternative management techniques may need to be considered under the following conditions:

Acute or chronic infections, either local or systemic.
Local or systemic accurate or chronic inflammation.
Serve muscular, nervous or vascular disease endangering the affected area.
Defective bone structures, which would impede adequate anchoring of the implant.
All associated diseases which could endanger the function and success of the implant.

Warnings and Precautionary for Mini Fragment Instruments Set

Before using Mini Fragment Instruments Set, the surgeon and ancillary staff should study the safety information in these instructions, as well as any product-specific information in the product description, surgical procedures and/or brochures.

Instruments are made from medical grade materials and are designed, constructed and produced with utmost care. These quality Instruments assure best working results provided they are used in the proper manner. Therefore, the following instructions for use and safety recommendations must be observed.

Improper use of Instruments can lead to damage to the tissue, premature wear, destruction of the instruments and injury to the operator, patients or other persons.

It is vital for the operating surgeon to take an active role in the medical management of their patients. The surgeon should thoroughly understand all aspects of the surgical procedure and instruments including their limitations. Care in appropriate selection and proper use of surgical instruments is the responsibility of the surgeon and the surgical team. Adequate surgical training should be completed before use of Mini Fragment Instruments Set.

Factors which could impair the success of the operation:

Allergies to implanted materials.
Localized bone tumours.
Osteoporosis or osteomalacia.
System disease and metabolic disturbances.
Alcohol and drug abuse.
Physical activities involving excessive shocks, whereby the implant is exposed to blows and/or excessive loading.
Patients who are mentally unable to understand and comply with the doctor’s instructions.
Poor general health.

Possible Adverse Effects

The following adverse effects are the most common resulting from implantation:

Loosening of the implants, which may result from cyclic loading of the fixation site and/or tissue reaction of the implant.
Early and late infection.
Further bone fracture resulting from unusual stress or weakened bone substance.
Temporary or chronic neural damage resulting from pressure or hematomata.
Wound hematomas and delayed wound healing.
Vascular disease including venal thrombosis, pulmonary embolism and cardiac arrest.
Heterotopic ossification.
Pain and discomfort due to presence of the implants.
Mechanical failure of the implant, including bending, loosening or breakage.
Migration of implant resulting in injury.

Preoperative Planning for Mini Fragment Instruments Set

The operating planning is carried out following a thorough clinical evaluation of the patient, Also, x-rays must be taken to allow a clear indication of the bony anatomy and associated deformities. At the time of the operation, the corresponding implantation instruments in addition to a complete set of Mini Fragment Instruments Set must be available.

The clinician should discuss with the patient the possible risks and complications associated with the use of implants. It is important to determine pre-operatively whether the patient is allergic to any of the implant materials. Also, the patient needs to be informed that the performance of the device cannot be guaranteed as complications can affect the life expectancy of the device.

Mini Fragment Instruments Set Precautions

Confirm functionality of Mini Fragment Instruments Set and check for wear during reprocessing. Replace worn or damaged instruments prior to use.
It is recommended to use the Mini Fragment Set identified for particular implants.
Handle devices with care and dispose worn bone cutting instruments in a sharps container.
Always irrigate and apply suction for removal of debris potentially generated during implantation or removal.

Mini Fragment Instruments Set Warnings

Few Instruments from this set can break during use (when subjected to excessive forces). While the surgeon must make the final decision on removal of the broken part based on associated risk in doing so, we recommend that whenever possible and practical for the individual patient, the broken part should be removed. Be aware that implants are not as strong as native bone. Implants subjected to substantial loads may fail.
Mini Fragment Instruments Set may have sharp edges or moving joints that may pinch or tear user’s glove or skin.
Take care to remove all fragments that are not fixated during the surgery.
While the surgeon must make the final decision on implant removal, we recommend that whenever possible and practical for the individual patient, fixation devices should be removed once their service as an aid to healing is accomplished. Implant removal should be followed by adequate post-operative management to avoid refracture.

Mini Fragment Instruments Set General Adverse Events

As with all major surgical procedures, risks, side effects and adverse events can occur. While many possible reactions may occur, some of the most common include: Problems resulting from anesthesia and patient positioning (e.g. nausea, vomiting, dental injuries, neurological impairments, etc.), thrombosis, embolism, infection, nerve and/or tooth root damage or injury of other critical structures including blood vessels, excessive bleeding, damage to soft tissues incl. swelling, abnormal scar formation, functional impairment of the musculoskeletal system, pain, discomfort or abnormal sensation due to the presence of the device, allergy or hypersensitivity reactions, side effects associated with hardware prominence, loosening, bending, or breakage of the device, mal-union, non-union or delayed union which may lead to breakage of the implant, reoperation.
